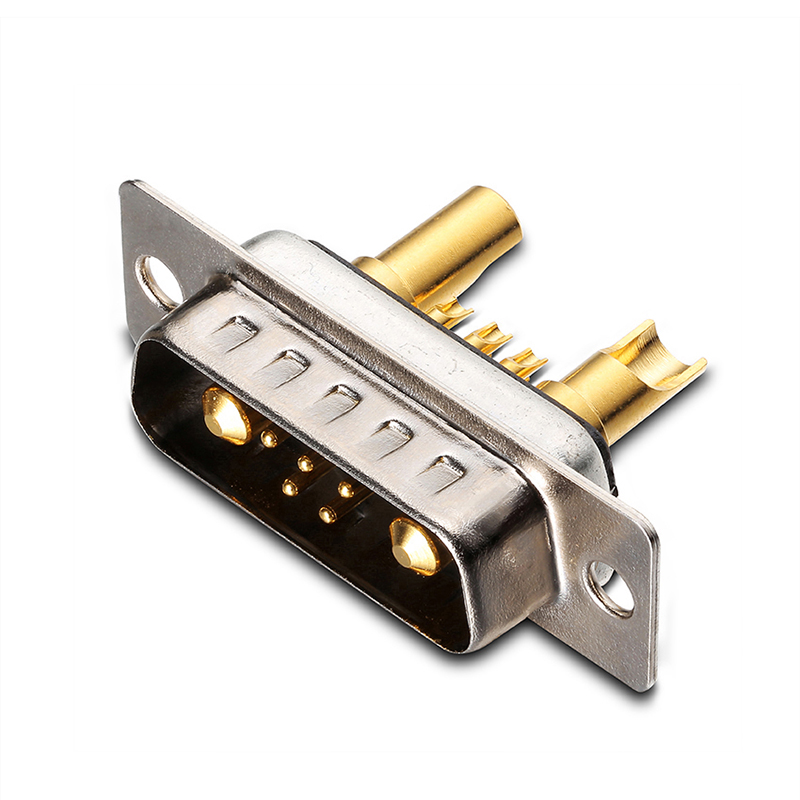

YL013-001 7W2 High current male D-sub connector
Browse:
- Specifications
- Description
- Model NO.: YL013-001
- Shell:Steel,Ni or Sn plated
- Contact:Brass,selective gold plated
- Rated current:40A
- Rated Voltage:300V DC
- Contact resistance:20m Ohms max
- Dielectric withstanding voltage:500v AC,min
- Insulation resistance:1000M ohms,min
- Operating temperature: -55℃ ～ +85℃
- Storage temperature: -55℃ ～ +105℃
- Insulation material:PBT+30%GF,UL94V-0
