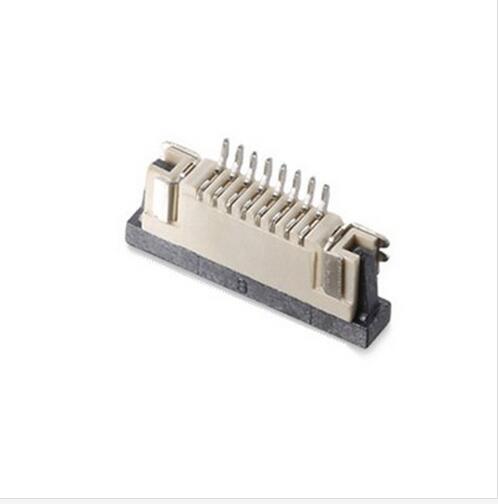

YL002-003 Drawer type bottom contact 0.5mm pitch FPC connector
Browse:
- Specifications
- Description
- Model NO.: YL002-003
- Current Rating: 0.4A AC(RMS)/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 500MΩ Min
- Operating Temperature: ﹣ 20℃～﹢85℃
- Plastic parts: LCP, UL94V-0
- Lock: LCP/PA46, UL94V-0
- Insert spring: Phosphor Bronze, Tin Plated / Gold
- Solder: Phosphor Bronze, Tin Plated / Gold Plated
- FPC connector
- Voltage Rating: 50V AC(RMS)/DC
Drawer type bottom contact 0.5mm pitch FPC connector
FPC connector supplier
Good quality
Short production lead time
